Boot mode selection - S5[edit | edit source]

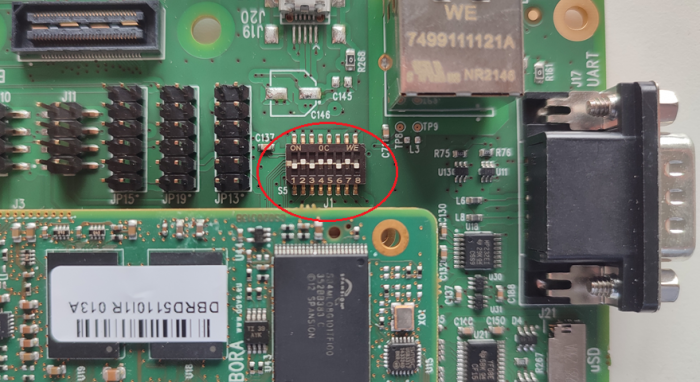

S5 is a dip-switch for the boot mode selection. The following table reports the available options and the related configurations:
| S5.1 | S5.2 | S5.3 | S5.4 | S5.5 | S5.6 | S5.7 | S5.8 | |
|---|---|---|---|---|---|---|---|---|
| SPI-NOR | OFF | ON | OFF | ON | ON | ON | ON | OFF |
| SD-card | OFF | ON | OFF | ON | ON | OFF | ON | OFF |
| NAND | OFF | ON | OFF | ON | ON | OFF | ON | ON |
| JTAG | OFF | ON | OFF | ON | ON | ON | ON | ON |
