CPU connector[edit | edit source]

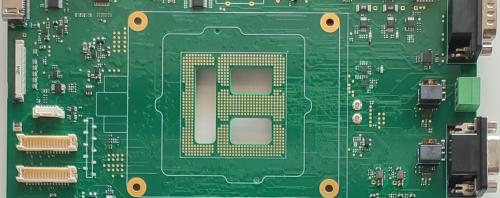

J1 is the OSM-L connector of the ZERO SOM.
In the ZERO Evaluation Kit, the SOM is soldered in the carrier board so the connector is not visible but represents the SOM J1 connector.
For a detailed description of the SOM pinout, please refer to the ZERO SOM SOM Hardware Manual.
