ADCs[edit | edit source]
The ADC interface is connected to two analog potentiometers in the EB23 carrier board.
Description[edit | edit source]

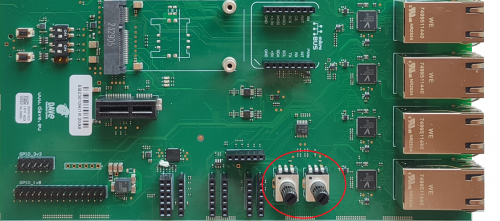

The two potentiometers are visible in the picture here below:
Signals[edit | edit source]
The following table describes the interface signals:
| OSM contact | OSM name | Pin function | Pin Notes |
|---|---|---|---|
| M18 | ADC_0 | Analog channel 0 | |
| N18 | ADC_1 | Analog channel 1 |
Device mapping[edit | edit source]
The ADC peripheral is mapped to the adc2/iio interface in Linux.
Device usage[edit | edit source]
The peripheral is used by the ADC kernel interface as documented in the DESK-RZ-L wiki page.
