Mechanical specifications[edit | edit source]
This page describes the mechanical characteristics of the ZERO EvaluationKit carrier board.
Board layout[edit | edit source]

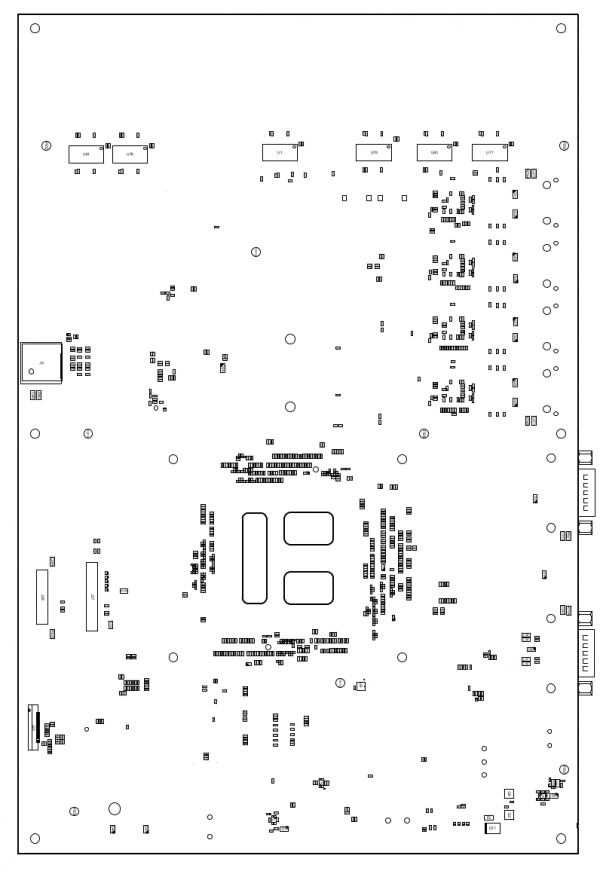

ZERO Evaluation Kit assembly view

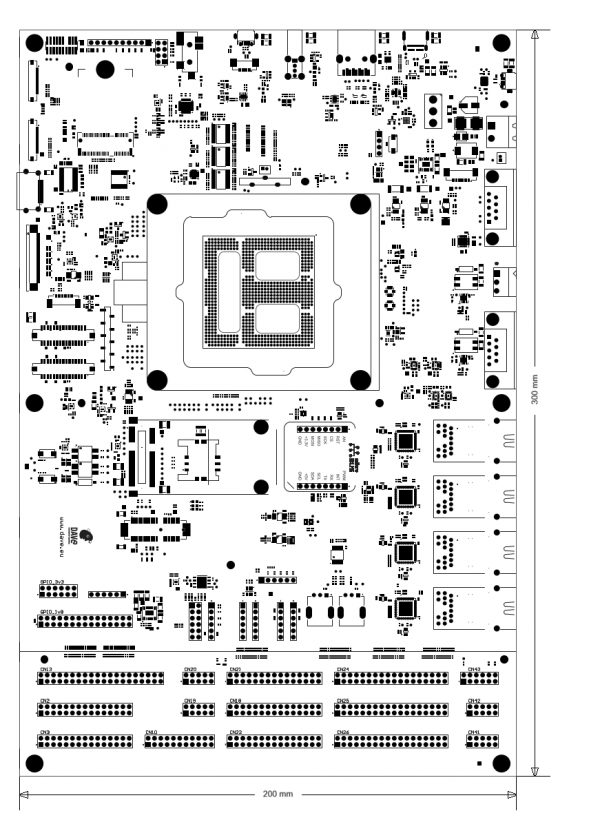

Dimensions[edit | edit source]
Mechanical data[edit | edit source]
| Dimension | Value |
|---|---|
| Width | 200 mm |
| Depth | 300 mm |
| Max component's height (top) | 20.35 mm |
| Max component's height (bottom) | 2.40 mm |
| PCB height | 1.65 mm |
