mikroBUS[edit | edit source]

The J28/J29 are mikroBUS™ connector socket supporting many extension add-on boards.

Description[edit | edit source]

J28 and J29 are two 1x8x2.54mm pin female headers that support mikroBUS boards for many standard peripherals and developer solutions. For example, the Click boards have many ready-to-use solutions; the interface sub-section has a collection of interfaces.

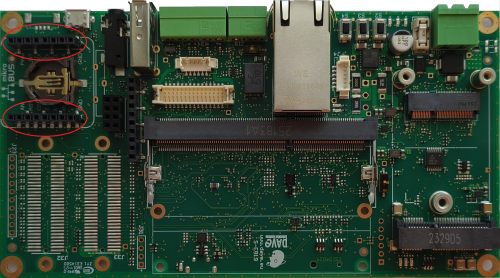

mikroBUS connector


Signals[edit | edit source]

The mikroBUS™ connector exposes the interface signals:

J28[edit | edit source]

Pin# Pin name Pin function SO-DIMM pin #
1 ADC 111 or 113
2 RST reset signal GPIO exp P05 or

POR (optional)

3 CS Chip select 191 or

SPI_A SS0

4 SCLK SPI_A SCLK (optional)
5 MISO SPI_A MISO (optional)
6 MOSI SPI_A MOSI (optional)
7 +3V3 Carrier board 3V3
8 GND Ground

J29[edit | edit source]

Pin# Pin name Pin function SO-DIMM pin #
1 PWM 36 or

28 (optional)

2 INT interrupt signal GPIO exp P01
3 RX UART RX signal 89
4 TX UART TX signal 91
5 SCL I2C_A SCL (optional)
6 SDA I2C_A SDA (optional)
7 +5V Carrier board 5V
8 GND Ground
