RTC[edit | edit source]
Description[edit | edit source]
UNICA SBC uses an external I2C RTC device, i.e. DS3232MZ+.

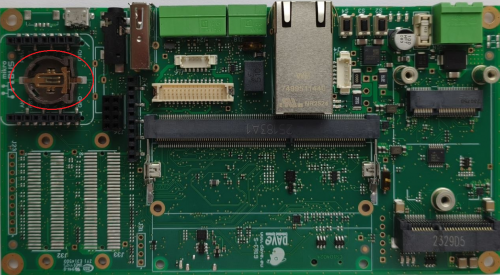

An external coin cell battery (like Panasonic CR1220 battery) can be optionally installed on the UNICA SBC battery holder.
Signals[edit | edit source]
The following table describes the interface signals:
| Pin# | Pin name | Pin function | Pin Notes |
|---|---|---|---|
| 1 | CELL | VRTC | coin cell battery positive pin |
| 2 | GND | Ground |
Device mapping[edit | edit source]
RTC is mapped to /dev/rtc0 device in Linux.
Device usage[edit | edit source]
The peripheral can be accessed through the date and hwclock linux commands.
