Power Supply interface[edit | edit source]
Description[edit | edit source]

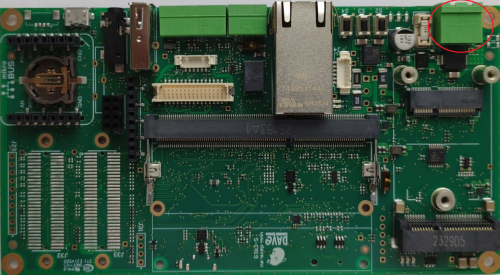

The Power Supply interface is available on the SBC connector J2.
J2 is a two-pin MSTBA 2.5/2-G-5.08 Phoenix connector.
Signals[edit | edit source]
The following table describes the interface signals:

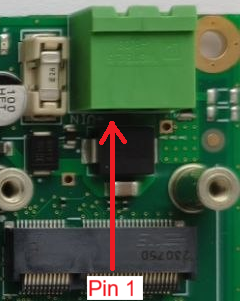

| Pin# | Pin function | Pin Notes |
|---|---|---|
| 1 | VIN | +[12-24 V] |
| 2 | DGND | Ground |
