Camera[edit | edit source]
Description[edit | edit source]

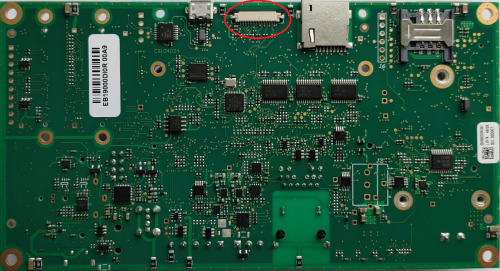

J17 is a 22x0.5 mm FPC camera connector matching the 22-pin Raspberry PI camera input interface.
This connector can be used as a camera interface to connect a PCAM-5C MIPI CSI-2 camera device.
Signals[edit | edit source]
The following table describes the interface signals:
| Pin# | Pin name | Pin function |
|---|---|---|
| 2 | CAM_D0_N | CSI Data 0 - |
| 3 | CAM_D0_P | CSI Data 0 + |
| 5 | CAM_D1_N | CSI Data 1 - |
| 6 | CAM_D1_P | CSI Data 1 + |
| 8 | CAM_CLK_N | CSI Clock - |
| 11 | CAM_D2_N | CSI Data 2 - |
| 12 | CAM_D2_P | CSI Data 2 + |
| 14 | CAM_D3_N | CSI Data 3 - |
| 15 | CAM_D3_P | CSI Data 3 + |
| 17 | CAM_IO0 | Power Enable |
| 18 | CAM_IO1 | Power Enable |
| 20 | CAM_SCL | I2C SCL |
| 21 | CAM_SDA | I2C SDA |
| 1, 4, 7, 10, 13, 16, 19 | DGND | Ground |
Device mapping[edit | edit source]
The MIPI CSI peripheral is mapped to the corresponding /dev/video<X> device in Linux. The device mapping depends on the device tree configuration.
