Product Highlights[edit | edit source]
The UNICA SBC platform presented here provides a compact solution for any industrial application and can be easily interfaced with Plant Automation Control thanks to IEC-61131 SW language environment and/or other plug-ins like nodeJS and web-based applications.

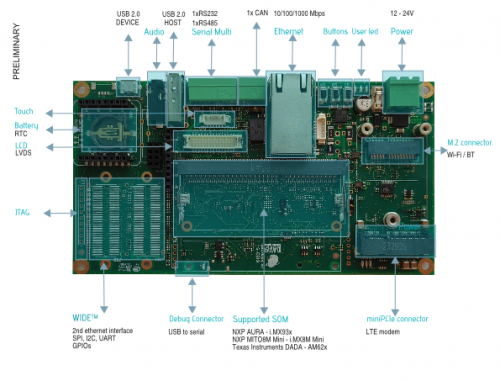

The following table summarizes the main hardware and software features available with UNICA SBC:
Hardware[edit | edit source]
| Subsystem | Characteristics |
|---|---|
| SOM | AURA (i.MX93) MITO 8M Mini (i.MX8M Mini) Texas Instruments DADA (AM62x) |
| Serial Ports | 1x RS232 or RS485 1x CAN |
| Ethernet | 1x 10/100/1000 Mbps |
| USB | 1x USB 2.0 Host port
1x USB 2.0 OTG |
| Graphics and touch | 1x LVDS channel with PCAP touchscreen |
| Audio | 1x audio codec with headphone ouput |
| Camera | 1x MIPI-CSI-2 interface connector |
| RTC | Battery backup |
| Connectivity | (optional) Bluetooth and Wi-Fi on M.2 socket (optional) LTE modem on miniPCIe socket |
| LED and Buttons | 3 LED and 3 buttons |
| Expansion connectors | (optional) UART, I2C, SPI, CAN, ADC, GPIOs connections |
| PSU | 12 to 24V DC |
| Mechanical Dimensions | 154x82mm |
Software[edit | edit source]
| Subsystem | Options |
|---|---|
| Operating System | Linux |
| Distribution | Yocto, Debian, Buildroot |
| Applications | SoftPLC, IoT runtime, nodeJS |
