Mechanical specifications[edit | edit source]
This page describes the UNICA SBC board's mechanical characteristics.

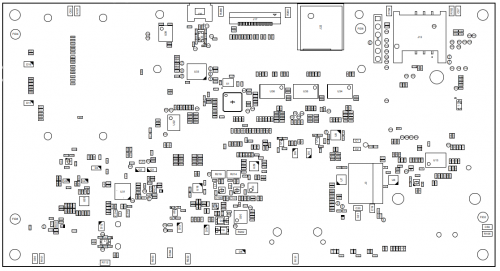

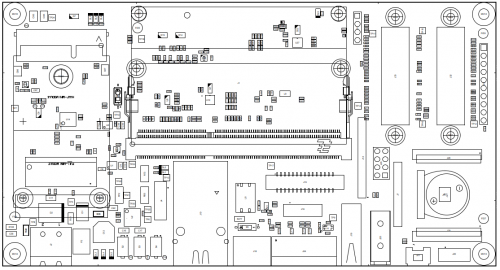

Board layout[edit | edit source]
CAD drawings[edit | edit source]
- STEP (3D): UNICA.step
Mechanical data[edit | edit source]
| Dimension | Value |
|---|---|
| Width | 154 mm |
| Depth | 82 mm |
| Max component height (top) | |
| Max component height (bottom) | |
| PCB height |
