Watchdog[edit | edit source]

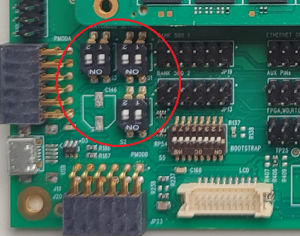

S1, S2 and S3 are dip-switch to override the default watchdog settings (startup delay and timeout) of the ONDA module watchdog.
For more details, please refer to this page.
| WD_SET0 | S1.1 | S1.2 |
|---|---|---|
| SOM default | OFF | OFF |
| '1' | ON | OFF |
| '0' | OFF | ON |
| WD_SET1 | S2.1 | S2.2 |
|---|---|---|
| SOM default | OFF | OFF |
| '1' | ON | OFF |
| '0' | OFF | ON |
| WD_SET2 | S3.1 | S3.2 |
|---|---|---|
| SOM default | OFF | OFF |
| '1' | ON | OFF |
| '0' | OFF | ON |
