Block Diagram and features[edit | edit source]

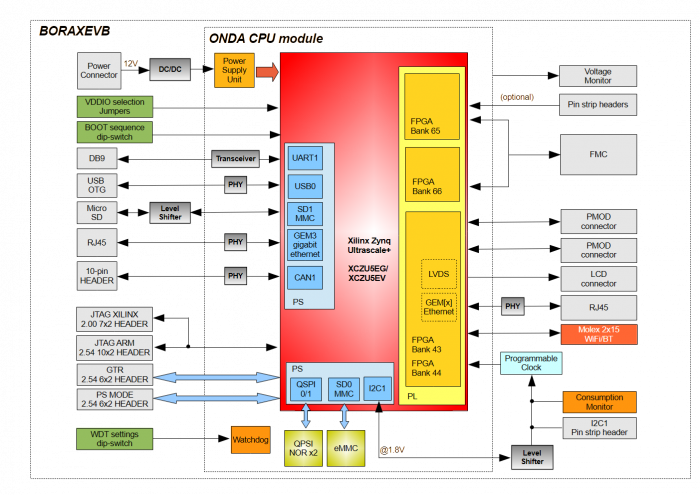

The following picture shows ONDA Evaluation Kit block diagram:
Configurable routing options[edit | edit source]
FPGA banks #43, #44, #65 and #66 supports different routing options as shown in the following picture:
For a detailed description of FMC connector routing, please refer to this page.
Features summary[edit | edit source]
- 10/100/1000 Ethernet #0 (PS)
- 10/100/1000 Ethernet #1 (routed through EMIO)
- 1x USB 2.0 OTG (MicroAB connector)
- 1x Serial port (RS232 DB9)
- 1x MicroSD slot
- 1x FPGA Mezzanine Card (FMC) Connector
- JTAG port
- Digilent Pmod™ Compatible expansion connectors
- 2.54mm-pitch pin-strip connectors for ONDA PS and PL configurable peripherals (MIO and EMIO interfaces, GPIOs, custom IPs, ..)
- Jumpers for voltage selection of the PL banks
- +12V power connector
